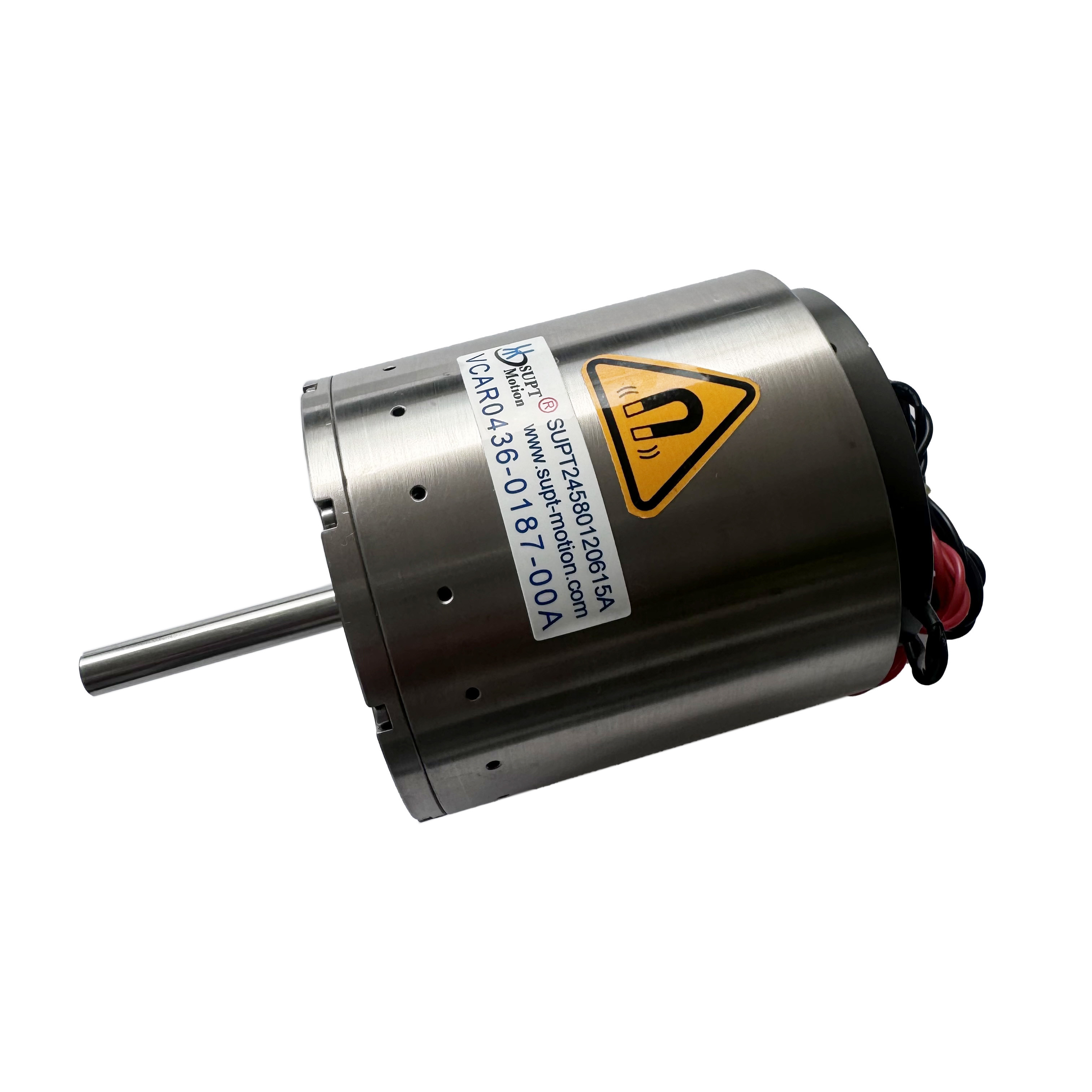

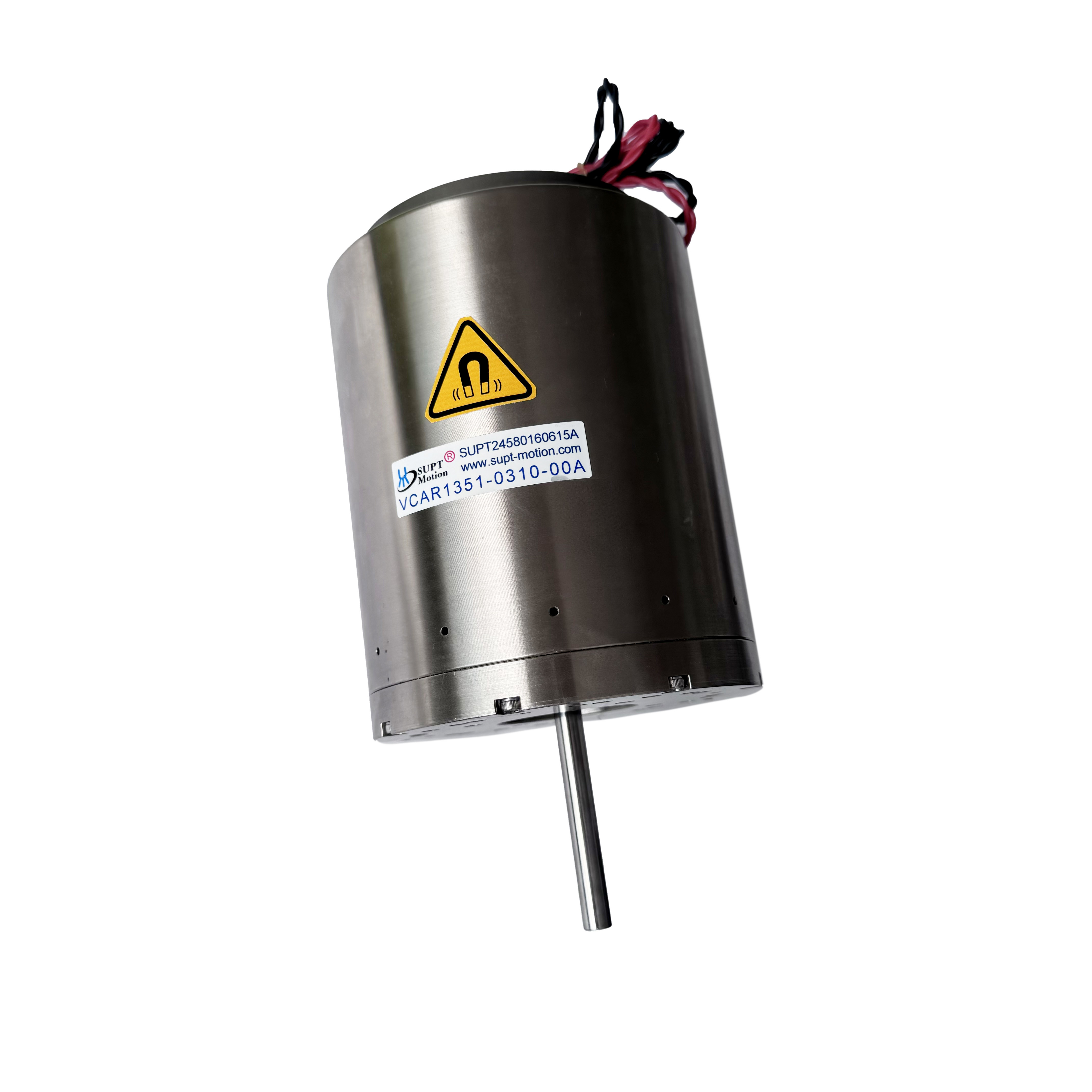

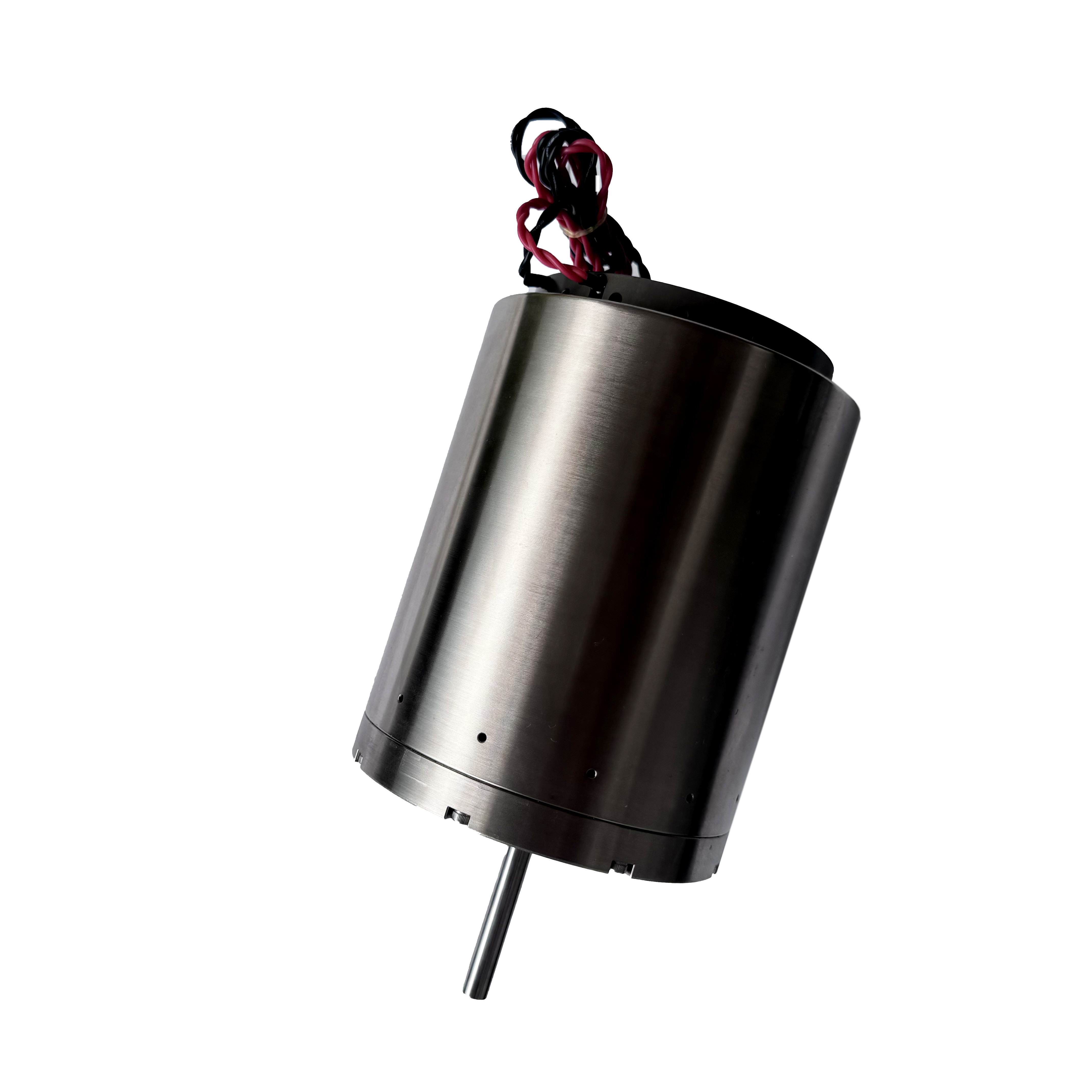

Low Noise High Stability Linear Voice Coil Motor For Medical Scanners
| उत्पत्ति के प्लेस | चीन, सूज़ौ |
|---|---|
| ब्रांड नाम | SUPT MOTION |
| प्रमाणन | ISO9001,CE,3C |
| मॉडल संख्या | वीसीएबी श्रृंखला |
| न्यूनतम आदेश मात्रा | 1 टुकड़ा |
| मूल्य | $108-$200 |
| पैकेजिंग विवरण | अनुकूलित पैकेजिंग आदि। |
| प्रसव के समय | <i>1-5pcs ,5 days .</i> <b>1-5 पीसी, 5 दिन।</b> <i>>20pcs ,To be negotiated</i> <b>>20 पीसी, ब |
| भुगतान शर्तें | टी/टी |
| आपूर्ति की क्षमता | बातचीत करने के लिए |
नि: शुल्क नमूने और कूपन के लिए मुझसे संपर्क करें।
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
स्काइप: sales10@aixton.com
यदि आपको कोई चिंता है, तो हम 24 घंटे ऑनलाइन सहायता प्रदान करते हैं।
xउत्पाद विवरण
| गारंटी | 3महीने-1साल | उत्पाद मॉडल | VCAB0087-0563-00A |
|---|---|---|---|
| वजन (जी) | 177 | पीक फोर्स (एन) | 87 |
| कुल स्ट्रोक (मिमी) | 56.3 | अधिकतम वोल्टेज (V) | 63.4 |
| आवेदन | स्वचालित उत्पाद | रफ़्तार | उच्च |
| उत्पाद का प्रकार | रैखिक आवाज कुंडल मोटर | विनिमय | ब्रश |
| सतत बल(N) | 17.5N | अनुप्रयोग फ़ील्ड | 3सी इलेक्ट्रॉनिक्स, सेमीकंडक्टर, ऑटोमेशन, ऑप्टिक्स, निरीक्षण उपकरण |
| शोर | कम शोर |
उत्पाद विवरण
Product Description:
The VCAB0087-0563-00A shaft-type linear voice coil motor from SUPT adopts a moving-coilactuation mechanism combined with a precision-guided shaft and linear bearings, offering excellentstability within a compact structure. lts high-flux permanent magnet assembly creates a strongmagnetic field, enabling the lightweight moving coil to produce highly responsive and linear forceoutput with minimal inertia. This design allows the actuator to maintain outstanding dynamicbehavior during rapid acceleration, deceleration, and frequent reciprocating motion.
The Linear Voice Coil Motor, with its frictionless drive, high-frequency response, nanometer-level displacement resolution, and highly linear motion output, has become an essential actuator in modern medical scanning equipment. It is widely used in blood analyzers, CT auxiliary positioning units, confocal scanners, endoscope autofocus modules, and ultrasound probe scanning mechanisms, enabling fast, silent, contact-free, and highly repeatable micro-positioning performance.
Features:
- Frictionless Direct-Drive Architecture
- Ultra-Precise Micro-Positioning (Nanometer Resolution)
- Ultra-Low Noise Motion
- Millisecond-Level Fast Response
- Supports Closed-Loop Position / Force Control
Technical Specifications :
Stroke:56.3mm
Continuous Force:147.6N
Peak Force:87N
Force Constant:8N/A
Resistance:35.2Ω
Mass:good
Dimensions:200*400*400cm
Working Current:1.8A
Product Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil (g) |
Stator Diameter | Shaft end thread (mm) |
| VCAB0005-0039-00A | 5 | 1.5 | 3 | 5.4 | 0.9 | 23 | 29.5 | M2(Outer) |
| VCAB0005-0050-00A | 5 | 2.2 | 3.9 | 14.5 | 3.1 | 27 | 31.5 | M2.5(Outer) |
| VCAB0013-0072-00A | 13 | 4.2 | 7.2 | 26.6 | 5.72 | 16.2 | 26.2 | M3(Outer) |
| VCAB0015-0062-00A | 15 | 6.5 | 6.2 | 26.2 | 9.75 | 14.8 | 33 | M3(Outer) |
| VCAB0015-0127-00A | 15 | 4.9 | 12.7 | 21.5 | 4.1 | 12.5 | 30.5 | Shaft ∮4.8 |
| VCAB0022-0098-00A | 22 | 6.6 | 9.8 | 24.7 | 5.8 | 20 | 34.1 | M3(Outer) |
| VCAB0022-0448-00A | 22 | 11.4 | 44.8 | 14.3 | 4 | 52 | 48 | M3(Inner) |
| VCAB0032-0050-00A | 32 | 8.9 | 5 | 29.3 | 7.1 | 48 | 40 | M3(Inner) |
| VCAB0033-0099-00A | 33 | 8 | 9.9 | 24.3 | 5.87 | 23.5 | 36 | M3(Outer) |
| VCAB0033-0224-00A | 33 | 13.5 | 22.4 | 26.7 | 6.8 | 69 | 58 | M3(Inner) |
| VCAB0035-0105-00A | 35 | 15.6 | 10.5 | 11.9 | 5 | 91 | 50 | M3(Inner) |
| VCAB0044-0040-00A | 44 | 16.3 | 4 | 18.3 | 8.9 | 46.5 | 53 | M3(Inner) |
| VCAB0044-0059-00A | 44.1 | 17.7 | 5.9 | 14.3 | 8 | 43 | 46 | M3(Inner) |
| VCAB0044-0075-00A | 44 | 13.7 | 7.5 | 16.8 | 7.6 | 38.6 | 31.1 | M3(Outer) |
| VCAB0044-0249-00A | 44 | 11.7 | 24.9 | 44.9 | 8.88 | 65.9 | 38.1 | M3(Inner) |
| VCAB0070-0149-00A | 70 | 27.3 | 14.9 | 26.9 | 17.7 | 79 | 43 | M3(Inner) |
| VCAB0087-0062-00A | 87 | 21.67 | 6.2 | 34.5 | 12.7 | 45.2 | 43.1 | M3(Inner) |
| VCAB0087-0563-00A | 87 | 17.5 | 56.3 | 63.4 | 8.1 | 177 | 72 | shaft ∮10 |
| VCAB0088-0191-00A | 88.5 | 23.2 | 19.1 | 29.9 | 8 | 162 | 50.8 | M3(Inner) |
| VCAB0105-0164-00A | 105 | 35.4 | 16.1 | 20.1 | 11.5 | 150 | 60.4 | M3(Inner) |
| VCAB0113-0089-00A | 113 | 35 | 8.9 | 31 | 17.5 | 125 | 73 | shaft ∮8 |
| VCAB0262-0112-00A | 262 | 111 | 11.2 | 35.1 | 41 | 285 | 71 | shaft ∮10 |
| VCAB0262-0249-00A | 262 | 112 | 24.9 | 28.2 | 26 | 785 | 66 | shaft ∮8 |
| VCAB0294-0498-00A | 294 | 56.8 | 49.8 | 114 | 24.5 | 685 | 93 | shaft ∮10 |
| VCAB0436-0187-00A | 436 | 147.6 | 18.7 | 40.7 | 40.7 | 648 | 80.4 | shaft ∮10 |
| VCAB0436-0250-00A | 436 | 167 | 25 | 31.6 | 37.2 | 775 | 78.4 | shaft ∮10 |
| VCAB0445-0300-00A | 445 | 185 | 30 | 33 | 35 | 920 | 76.2 | shaft ∮10 |
Applications:
- Confocal Optical / Laser Scanners
- Endoscope Autofocus Units
- Hematology Cell Scanners
- Ultrasound Probe Scanning Mechanisms
- Medical Lab Micro-Positioning Stages
- CT / X-Ray Positioning Units
